ECG1200G - electrocardiograf 12 canale, profesional, printare termica, ecran LCD

Descriere

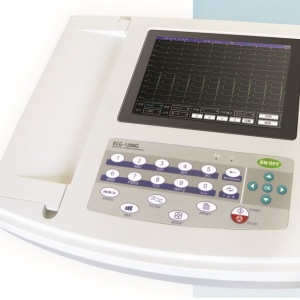

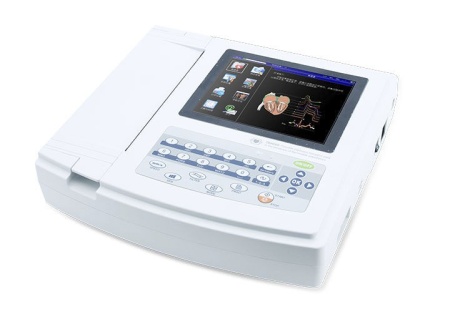

CONTEC ECG1200G - Electrocardiograf portabil, profesional, 12 canale simultan, ecran LCD 8" cu touchscreen, soft de diagnoza/interpretare inclus, memorie interna,  printare manual/automat, printare pe hartie termica, avertizare hartie lipsa, fiabil, usurinta in utilizare.

Caracteristici:

- memorie interna (maxim 1000pozitii)

- ecran LCD 8" touchscreen

- mod de operare: Key functionale sau comenzi direct pe ecran

- 12 canale simultan

- printare prin imprimanta termica proprie sau prin USB pe orice imprimanta legata la calculator

- soft de interpretare/diagnoza

- alimentare AC/DC 220V

- interfata utilizator in engleza

- durata acumulatorului: 4 ore sau 150 de unde sau 90 min de printare

- hartia termosensibila: 210 mm x 2 m

Pachetul standard contine:

- electrocardiograf 1buc

- cablu pacient 1buc

- 4 electrozi membre

- 6 electrozi precordiali

- 1 rola hartie

- cablu alimentare

- acumulator

- instructiuni de utilizare

----------------------------------------------------------------------------------------

ECG1200G is an electrocardiograph collecting 12-lead ECG signal simultaneously and printing ECG waveform with thermal printing system. Which features in, recording and displaying ECG waveform with manual or auto mode, measuring and diagnosing ECG waveform parameters automatically, prompting for "Lead off" and "Lack of paper", optional interface languages(Chinese/English), selecting rhythm lead, printing the trend chart and histogram of P-R interval, case database management.

Main Features

Operation

■ 8" TFT color LCD, clear ECG waveform and working state display, economical to save recording paper.

■ Operation mode: touch screen and function keys.

Functions

■ Sync collection for 12-lead ECG, adopt digital signal processing technology to get high-quality ECG waveforms via AC filter, baseline filter and EMG filter of ECG signal.

■ Sync display 3/6/12-lead ECG, print mode, sensitivity, paper speed and filter state, etc. on one screen, convenient to contrast.

■ Multiply printing modes and formats, including manual, 12*1, 6*2+1(rhythm lead), 6*2, 3×4+2(rhythm lead), rhythm 12, rhythm 10, rhythm 8, rhythm 6, etc. Waveform length printed can be adjusted, and with timing print function, which meets different requirements.

■ Paper speed: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s.

■ With the functions of auto-analysis and auto-diagnosis for routine ECG parameters, provide measurement results and auto-diagnosis conclusion for HR, P-R interval, P Duration, QRS Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1), etc. which reduces the doctor's burden.

■ Built-in memory stores up to 1000 cases, convenient for case review and statistic.

■ Multi-language(Chinese, English, Turkish, Portuguese, German, Russian, Kazakhstan) interface and report.

Power supply

■ AC/DC, and in optimal DC state, built-in rechargeable lithium battery can continuously work for 10h, print for more than 3h and 300-ECG, which meets the requirements of visiting a patient at home and body examination.
